Tools

The presence of the tools depends on the vehicle.
The emergency spare wheel storage case located on the passenger seat contains a bag containing the following tools:

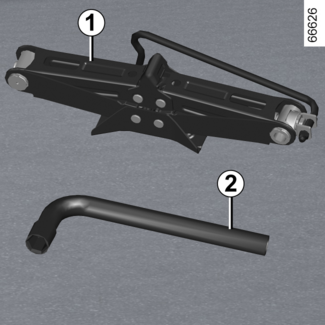

Jack 1
Fold it correctly before refitting it in its casing (ensure that the wheelbrace is correctly positioned).
Wheelbrace 2
This can be used to lock or unlock the wheel bolts and the towing eye 4.
The inflation kit case located in the luggage compartment contains the following tools:

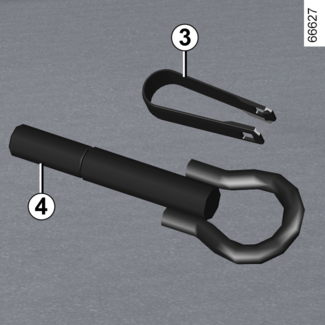

Tweezers 3
This is used to remove the wheel bolt covers.
Towing eye 4
Please refer to the information on "Towing: breakdown recovery" in Section 5.
Fuse tweezers 5
Pack of fuses
Please see the information on "Fuses" in Section 5.
WARNING
Do not leave the tools unsecured inside the vehicle as they may be projected during braking. After use, check that all the tools are correctly fitted into the case, then place the case correctly in its storage compartment to avoid any risk of injury.
The jack is designed for wheel changing purposes only. Under no circumstances should it be used for carrying out repairs underneath the vehicle or to gain access to the underside of the vehicle.
