Interior lighting: changing bulbs

  • 1
  • 2
  • 3
  • 4
  • 5

Interior lighting: changing bulbs

Courtesy light 1

Consult an approved dealer.

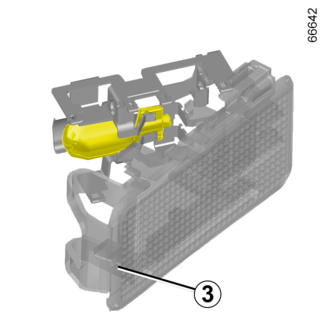

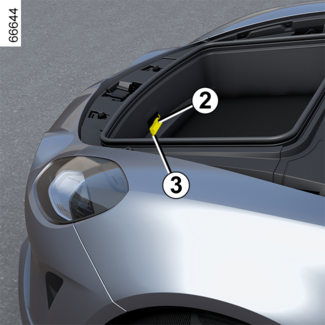

Bonnet storage compartment light 2

  • Unclip the light 2 by pressing the tab 3;
  • remove the light cover to gain access to the bulb.
Bulb type: W5W.

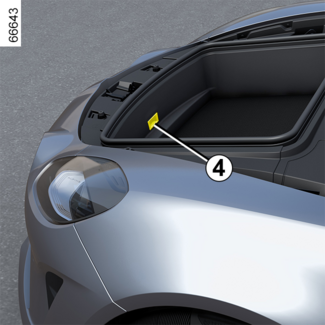

Light for luggage compartment 4

Unclip the light 4 by pressing the tab to its left (using a flat-bladed screwdriver or similar).
Remove the bulb concerned.
Bulb type: W5W.
WARNING
The bulbs are under pressure and may break when replaced.
Risk of injury.
