Headlight beam adjustment

Operation

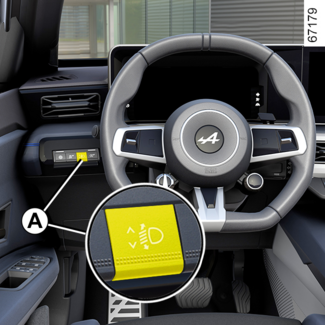

the switch A can be used to adjust the height of headlight beams according to the load.
With the dipped beam headlights on, press or raise switch A as many times as required to select the required position on the instrument panel. The position selected is displayed on the instrument panel for approximately 15 seconds.
Note: if the lights are on, at each engine start-up the selected position is displayed on the instrument panel for approximately 15 seconds.
Tip
When driving on the left in a left-hand drive vehicle (or vice versa), you must adjust your lights temporarily for the duration of your trip.

Table of adjustment position examples


Examples of positions for adjusting the control A according to the load
Driver only
0
Driver alone with a front passenger
0 or 1
All seats occupied
1 or 2
Driver with passengers and luggage (or load) reaching the maximum permissible all-up weight
2 or 3
Driver without passengers and luggage (or load) reaching the maximum permissible all-up weight
2 or 3 or 4
The table below gives some examples. In all cases, adjust the control A according to the vehicle load so that the road can be seen and other drivers are not dazzled.
